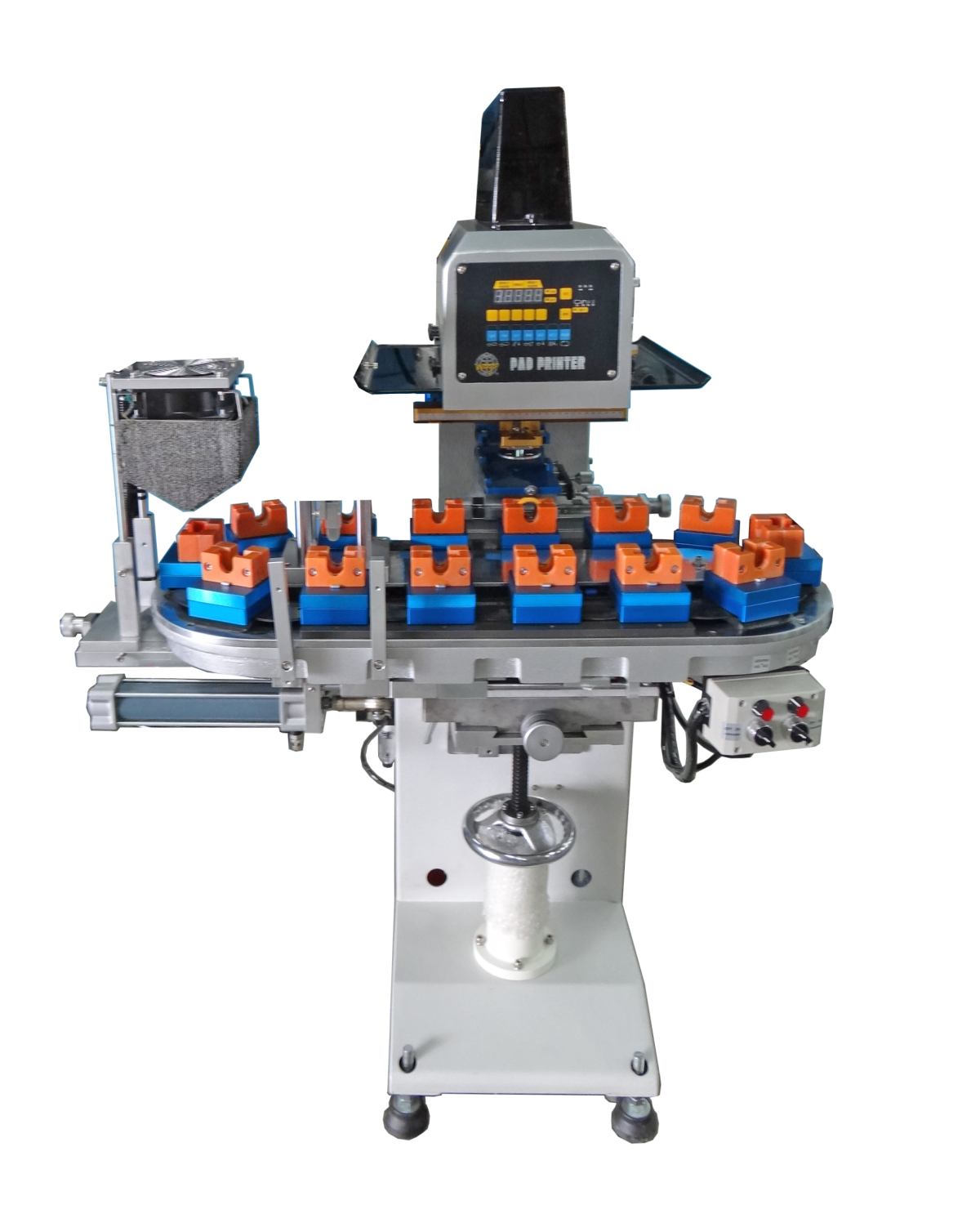

- Printing color: 1
- Stations: 14
- Maximum steel plate size: 100 x 100 (mm)
- Output / hour: 800 ~ 1,600
- Machine dimensions (L x W x H): 850 x 920 x 1,400 (mm)
- Net weight: 200 kg
- With microprocessor controlled and auto "DEFAULT" system, easy to operate and maintenance.
- An advanced and unique four times "PAUSE" function for better printing quality has been designed to enable users who may stop or continue the operation, as wish, any time in process of printing.
- A durable and trouble free with Taiwan made quality pneumatic components and bearing have been adopted and used on the machine.
- An individual air cylinder is used on rotary conveyor table for precise positioning.
- An optional hot air equipment for quality printing is suggested and recommended (On request).
- Custom-made machine is available and welcome.
- The positioning accuracy of the rubber Pad front/back stroke is +/- 0.02mm
_______________________________product specification__________________
| Model | WE-251A |
| Color | 1 |
| Ink supply | Ink-cup ∮60mm (sealed) |
| Control panel | membrane switch or HMI panel (optional) |
| Steel plate size(mm) | 90*200*10 |
| Max print area | ∮45 |
| Pad front-rear stroke | 125mm |
| Pad up-down stroke | 50mm |
| Slide table stroke | − |
| Positioning accuracy | (+/-0.02) |
| Working table size (mm) | 80*220 |
| Working table up-down | 150mm |
| Rotary stations | − |
| Hot air dryer | option |
| Ink removal device | option |
| Lighting | yes |
| Side safe door | no |
| Emergency stop | no |
| Air pressure locker | no |
| Output/Hr | 900-1500 |
| power d(choose one) (5A for hot air device) | 1∮ 110V or 220V 3A 50~60Hz |
| Air pressure (kg/cm2) | 6 |
| Pad pressurize kgf | 75 |
| Air consumption (L/Min) | 9 |
| Dimension L*W*H (mm) | 850 x 920 x 1,400 (mm) |
| Net WT(kg) | 150 |
